Visiooimage Inc. offers two infrared thermography solutions for NDT, designed to detect defects such as subsurface delaminations, porosity, damage, and cracks in a variety of materials, including composites, plastics, and metals.
Both are customizable – explore individual components on our Product page to tailor a solution to your needs.
InfraPAK II: Versatile Standard Infrared Thermography System

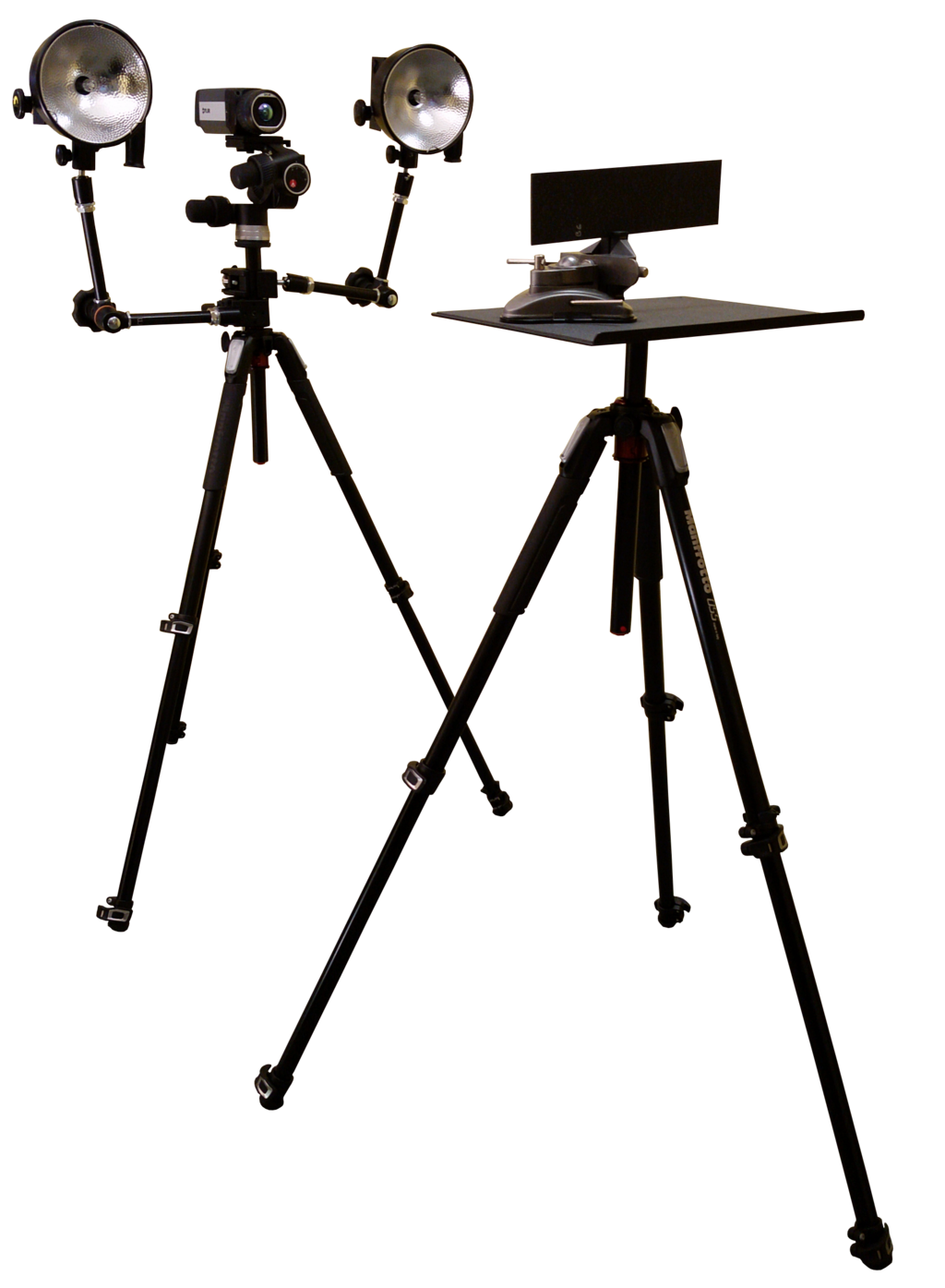

Example of Mounting in Reflection Mode: Heating and camera positioned on the same tripod with a precise geared head. Small sample placed on the tripod shelf with a 360-degree vice.

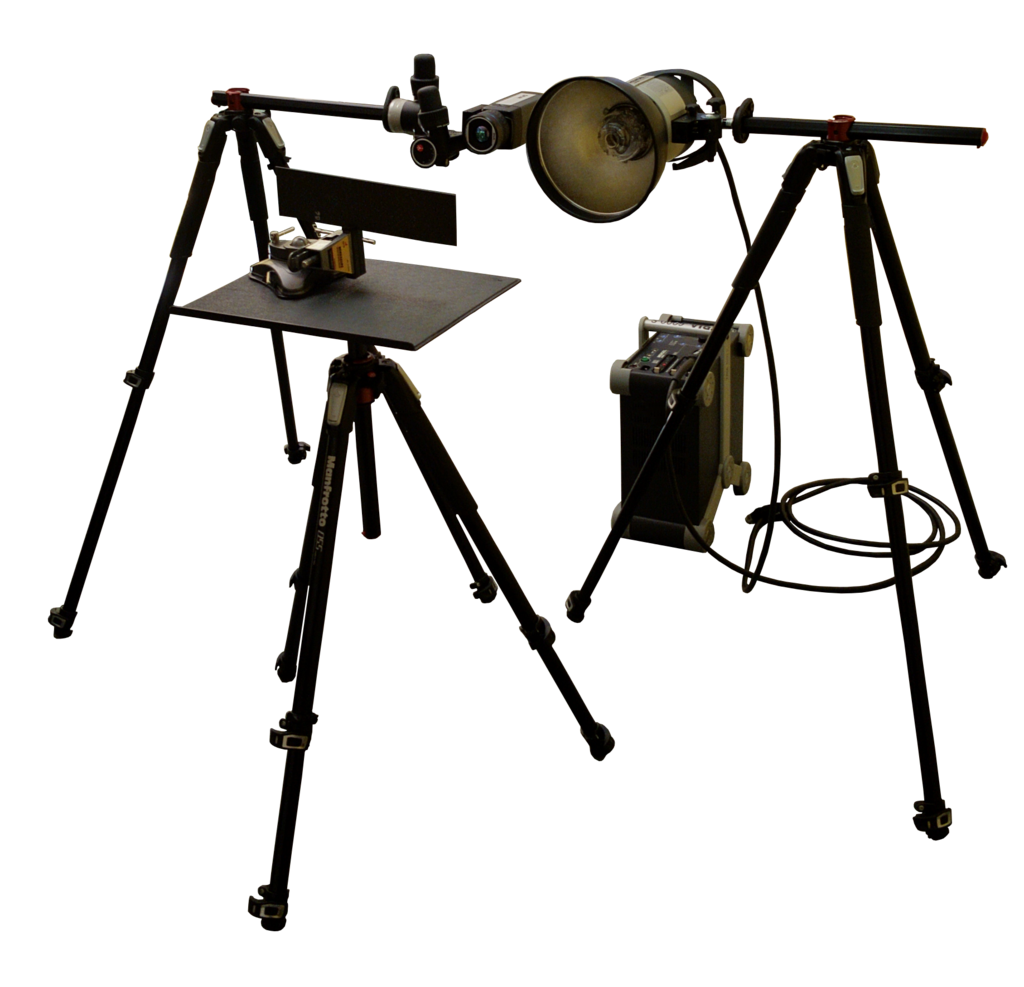

Example of Mounting in Reflection Mode: Overhung pulsed flash heating and camera arrangement enabling closer inspection

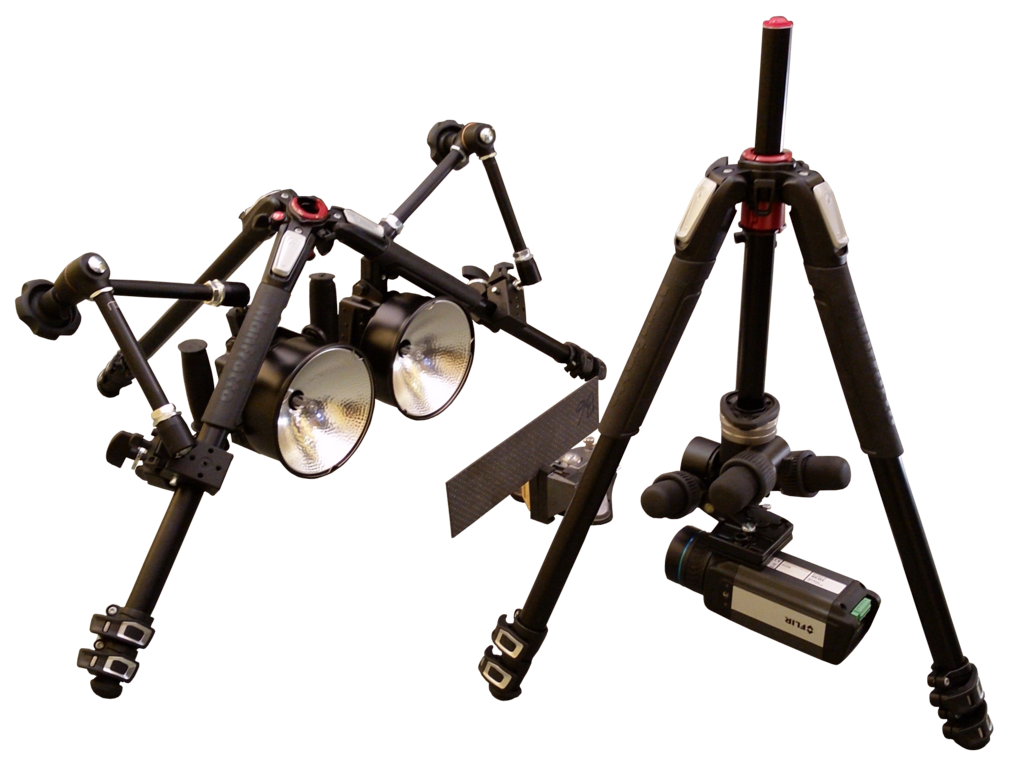

Example of Mounting in Transmission Mode: Sample placed on the floor, with camera and heating positioned upside down.
Items
Features
Standard Active Thermography System for Non-Destructive Testing
Versatile setup for plate and non-planar sample inspection. Easily adjust the heating source, camera, and sample holder to any position. Effective on composite materials used in aerospace, naval, wind energy, cycling, and more.
Ideal for R&D, training, demonstrations, and small-scale production. Includes basic automation features via Telnet protocol.
Standard heating sources: halogen (step, pulse, or lock-in modes). Optional xenon flash. Operation in transmission or reflection mode.

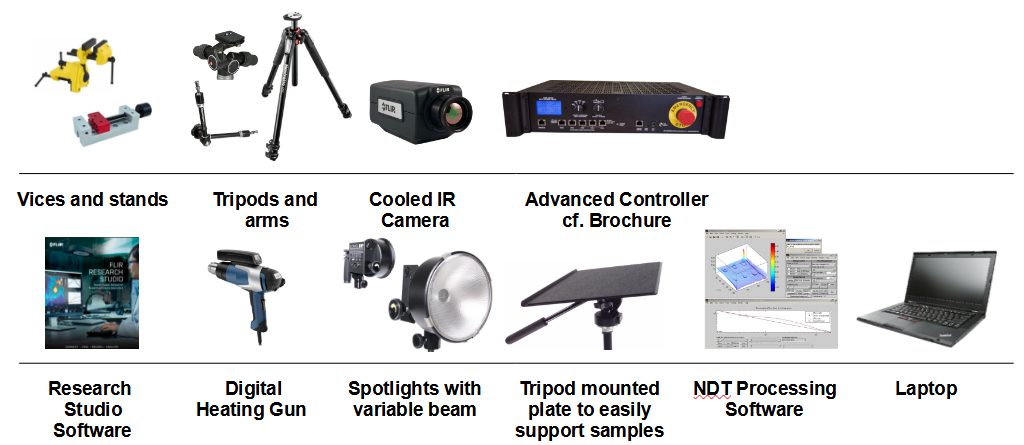

Package Includes (All Items Optional):
1x Tripod for camera with geared head
1x Infrared camera (various models available) with acquisition software
1x Digital heat gun
2x Tripods with articulated arms for halogen and/or flash heating
2x Adjustable-beam 1kW halogen heaters
1x IRT controller/dimmer (2.3/3.5kW)
1x Tripod shelf
2x Precision 360° vices
2x Precision small square vices for sample clamping
1x IR View NDT software for IRT post-processing
1x Laptop
Options
Various IR camera models can be integrated into the package. Available resolutions range from 640×480 up to megapixel-class. Options include cooled or uncooled, fixed, industrial, or handheld configurations. Please contact us for a list of supported models.
Optional pulsed flash heads and 6kJ generators (daisy-chainable), or induction heating, are also supported.
Training and support available in French / English / Spanish.
Download the PDF brochure

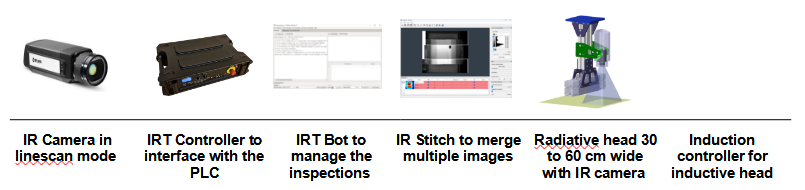

InfraSCAN Solution for automated IRT/NDT thermography. Locating defects in production.

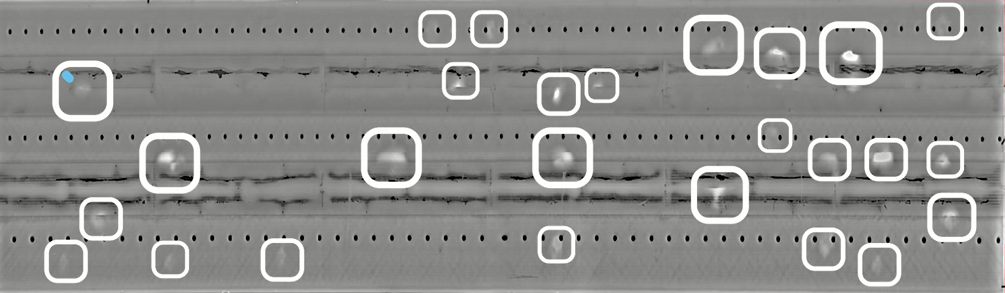

Inspection of a jet engine casing and resulting flattened view image of the casing, displaying impacts.
Items
Features
The inspection head is moved over the part to inspect using an actuator (not provided), such as a robot, a simple CNC, or a gantry. Alternatively, the inspection head can remain fixed if the parts are moving, for example, for inline inspection on conveyors.
The inspection system is 27 cm wide and operates at a speed of 12.5 mm/sec (0.2 m²/min) for 3-4 mm thick composite materials, up to 100 mm/sec (1.6 m²/min) for sub-millimeter thickness materials. Additionally, a 66 cm wide inspection head is available. The length of inspection or image is unlimited, as it is a continuous process.
The InfraSCAN solution is ideal:
- for inspecting large or long parts, whether flat or cylindrical,
- for inspecting a high volume of parts in series,
- when multiple plants need to conduct inspections with the same standard,
- when inspection speed is crucial with a high Probability of Detection (POD),
- for inline inspection over a conveyor.
Specifications for the radiative, 27 cm wide model Linescan head: Main arm length: extruded aluminum, 50 cm long * 45 mm * 90 mm. Overall dimensions when mounted: 5.0 kg, 65 cm height x 37 cm wide x 18 cm thick without the camera.
The radiative heating head can be swapped for an inductive heating head
Download the PDF brochure.
